Electrochemical deburring machines SEMAT

Sk-ECM450D series

Description

Electrochemical deburring and sharp-edged deburring machines are suitable for machining parts made of structural, heat-resistant, hardened, magnetic steels and alloys, aluminium and titanium alloys.

Application of such machines is expedient for deburring of tools, machine parts, devices, having complex construction or hard-to-reach places (internal intersections of surfaces, pockets, etc.), or not permitting change of physical and chemical properties of surface layer after treatment.

Features and advantages

  • Compact layout (3 m2) on a single base
  • Modular design
  • Electrolyte purification system
  • Modification of basic parameters according to customer requirements
  • Technological support (design of accessories, electrode-tools, optimisation of machining processes)

Processed materials

  • Corrosion-resistant steels: 12X13, 20X13 etc.
  • Stainless steels: 12X18H10T, 95X18, 14X17H2 etc.
  • Structural and carbon steels: 30XGSA, 38XA, 12XHN3A, ShKh-15-OH, etc.
  • Heavy-alloy steels: 10Х11Н23Т3МР, 37X12H8G8MFB, 45Х14Н14В2М etc.
  • Copper alloys: BrB2, L63, LS59, etc.
  • Aluminum alloys: AK4-1, AMG-6, D1T, etc.

Advantages of electrochemical treatment

  • Possibility of deburring and rounding of edges
  • Finish quality - to a "mirror"
  • No skilled manual labour required
  • Reduced labour requirements and machining costs
  • No mechanical contact with the workpiece
  • No tool wear
  • No increased heat on the workpiece
  • Ability to process metals of any hardness and strength

The composition of the unit

Working chamber

The working chamber of the machine consists of the electrode-tools and the table on which the equipment and the workpiece are positioned. The work chamber prevents the escape of electrolytes from the working area of the machine. For operator access to the work area, the front of the chamber is designed as a door that can be opened manually. The electrical power supply to the working chamber is made to the electrode-tool and to the workpiece via rails located on the rear wall of the chamber.

Constructively, the working chamber consists of the following main functional elements: chamber, chamber cover with handle, table, collector system for electrolyte supply, rails for supplying current to parts and to electrodes, ventilation duct. The working chamber is equipped with a ventilation sensor and illuminated by an LED light at the top of the rear wall. The machine has a flushing and draining valve system.

Control system

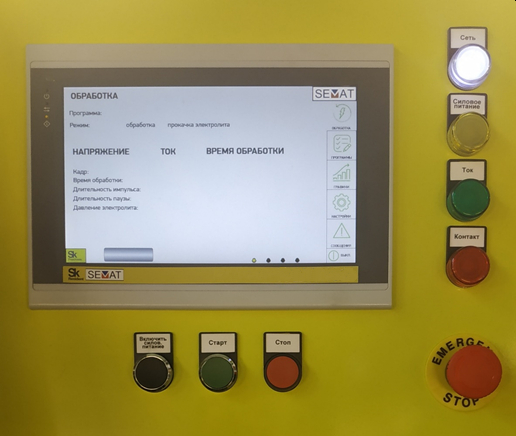

The control system is based on a panel with a 10" diagonal touch screen.
The panel is Teflon-coated.
The user-friendly user interface allows a large number of technological programmes to be defined, edited and stored. All operator actions and machine operations can be logged.

  • The advantages of a control system:

  • Intuitive user interface
  • Storage, editing of hundreds of programs
  • Automatic detection of the part and selection of the corresponding program
  • Counting of produced parts
  • Job logging
  • Possibility of remote updating of expert system knowledge base (for easier selection of machining modes for new parts)
  • Possibility of remote monitoring and connection to factory networks

Process current generator

The machine utilises a modular inverter generator in DC or pulse current modes. The use of a multi-mode generator allows increased productivity through direct current operation and improved precision through switching to pulsed mode. The short circuit protection is based on special algorithms.

The modular design allows you to quickly increase the generator output and quickly perform repairs by replacing a faulty module.

Electrolyte preparation and storage system

The machine uses a modular inverter generator with DC or pulse current modes. The use of the multimode generator improves productivity through direct current operation and increases precision through switching to pulse mode. The short circuit protection is based on special algorithms.

MODELS

Weight without electrolyte (kg)

Dimensions L x W x H (mm)

Maximum workpiece size (mm)

Sum of all energy consumers (kW)

Electrolyte tank capacity (l)

Current range (А)

Sk-ЕСМ225D

1-225

210

12

400х 500х400

1500х 1250х1800

350

Sk-ЕСМ450D

350

1500х 1250х1800

400х 500х400

20

210

1-450

General specifications:

Sk-ЕСМ1350D

350

1500х 1250х1800

400х 500х400

60

600

1-1350

Sk-ЕСМ900D

350

1500х 1250х1800

400х 500х400

40

600

1-900

AC, three-phase 380 V ± 10% 50 Hz ± 2%

Supply type 3PEN (3PE+N) voltage, V frequency, Hz

500х400

Table work surface size LxW (mm)

Tooling fixing on the working table

M8, pitch 110x130mm

Maximum weight of workpiece with equipment (kg)

70

5

Accuracy of maintaining the set voltage (%)

not more than 600

Weight of mechanical part of the machine (kg)

no

Tool storage device

6

Maximum pressure in pneumatic system (atm)

Voltage range (V)

6...30

Used electrolytes

Salts (10-15% NaCl, NaNO3 etc.), Acids

Inlet pressure range (atm)

0,1...6

Process time (s)

5…600
